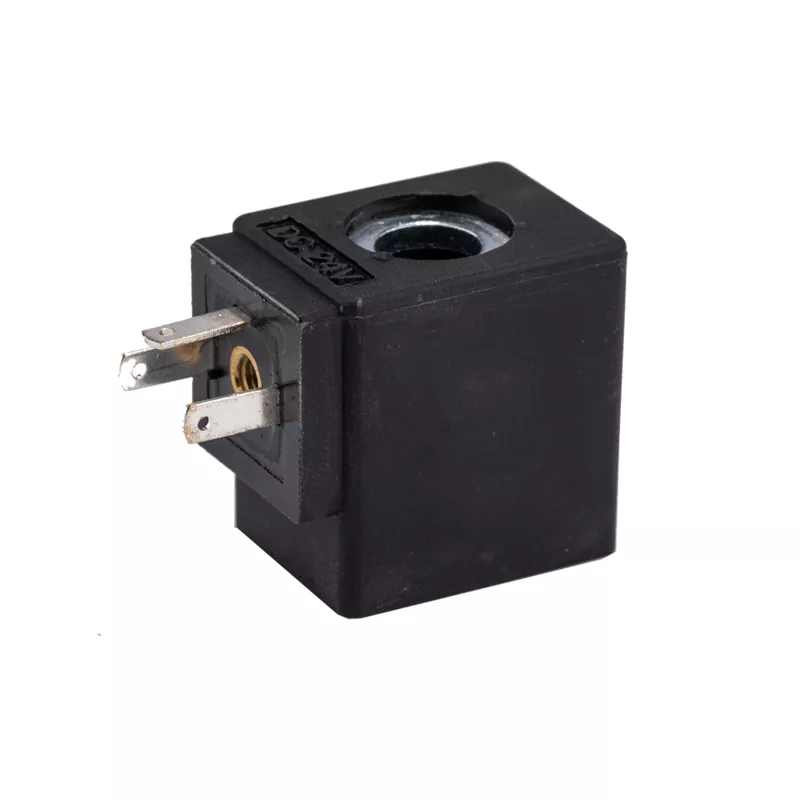

SB578 Pneumatic Coil

SB578 Pneumatic Coil

  • Diameter:8mm,Height:22.8mm

  • solenoid coil for 4V110

  • solenoid coil for 5/2 pneumatic valve

  • solenoid coil for 3/2 pneumatic valve

  • CE certificated solenoid coil for 5/2 pneumatic valve


Inquire Now Next Product

Product Details

Normal VoltageAC220V AC110V   DC24V DC12V
Normal PowerAC3VA 5VA
DC2.5W 2.8W
                        Other voltage and power can be customized
Insulation ClassF,H
Connection TypeDIN43650C
Diameter8 mm
Height22.8 mm

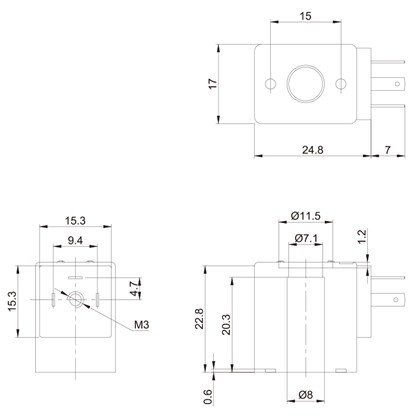

Overall Dimension

SB578
