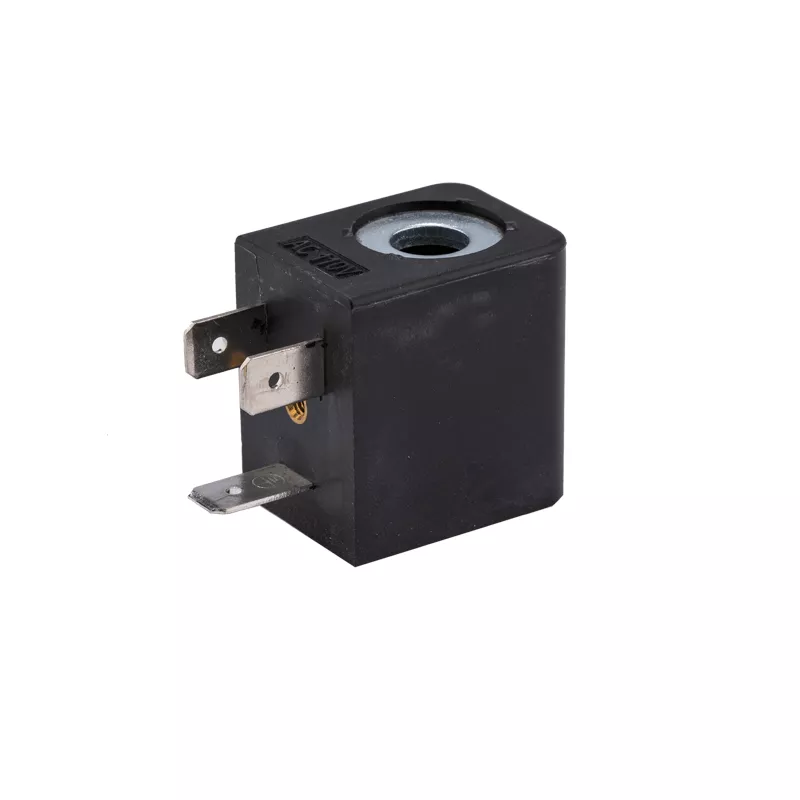

SB579 Pneumatic Coil

  • Diameter:9mm,Height:29.8mm

  • 22mm coil for 5/2 pneumatic valve

  • 22mm coil for Namur valve

  • 22mm coil for Namur solenoid valve

  • Namur solenoid valve coil

Product Details

Normal VoltageAC220V AC110V   DC24V DC12V
Normal PowerAC4VA 5.5VA
DC3W 4.8W
                        Other voltage and power can be customized
Insulation ClassF,H
Connection TypeDIN43650B
Diameter9 mm
Height29.8 mm

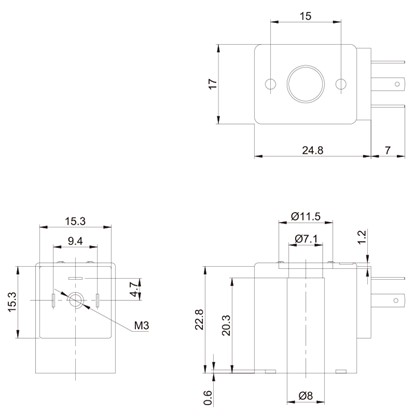

Overall Dimension
