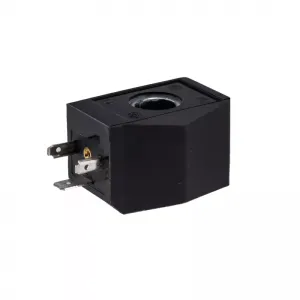

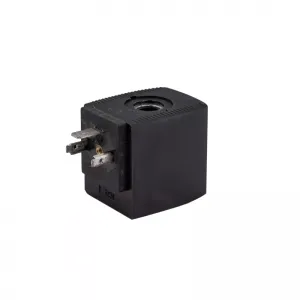

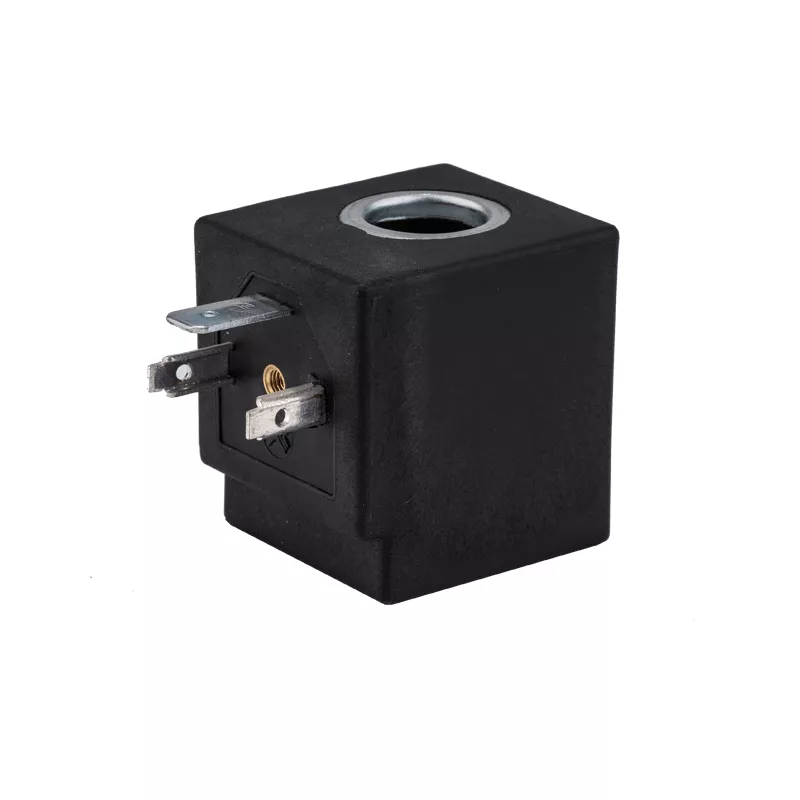

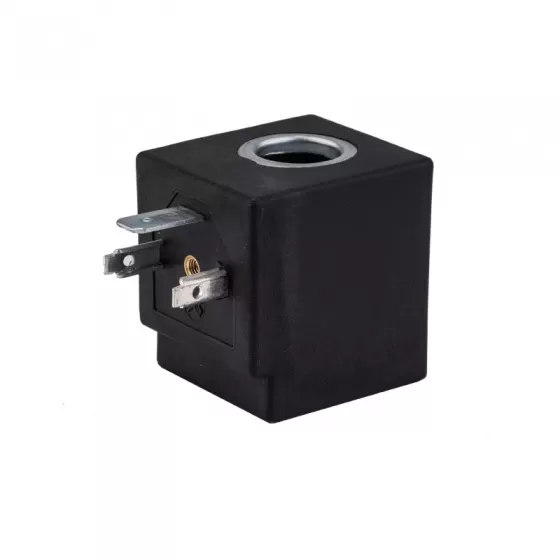

Pneumatic Coil
Pneumatic Coil
Diameter:13.1mm,Height:37.5mm
24V AC solenoid coil for hydraulic pneumatic system
CE certificated solenoid coil for 2/2 pneumatic NC valve
H class solenoid coil for 2/2 pneumatic NO valve
Product Details
| Normal Voltage | AC380V AC24V DC24V | |
| Normal Power | AC | 18VA |
| DC | 10W | |
| Other voltage and power can be customized | ||
| Insulation Class | F,H | |
| Connection Type | DIN43650A | |
| Diameter | 13.1 mm | |
| Height | 37.5 mm | |

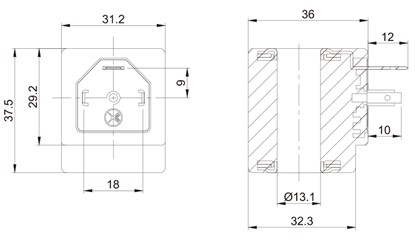

Overall Dimension
