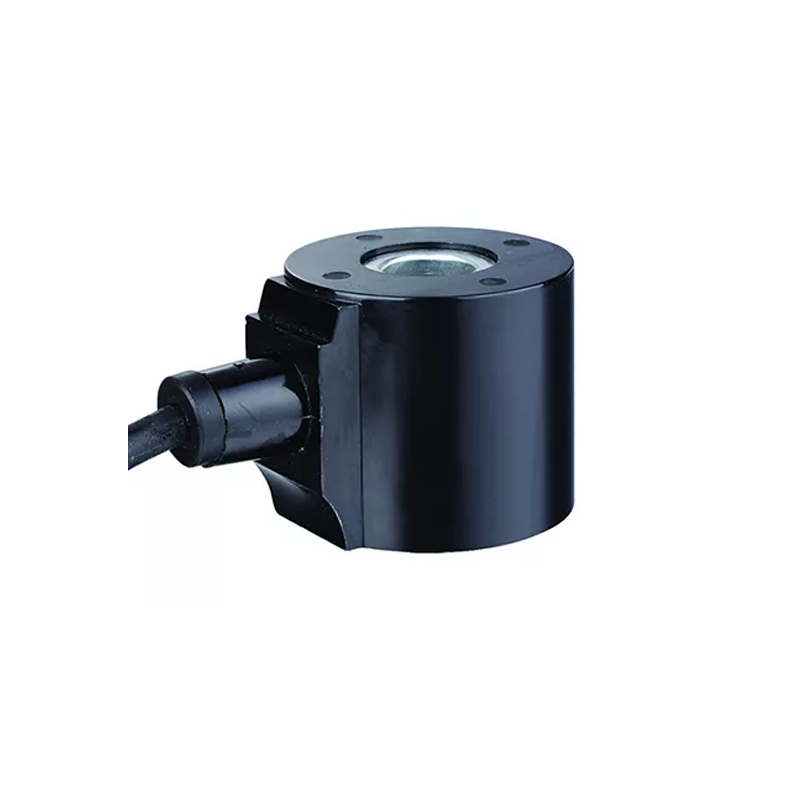

Pneumatic Coil
Pneumatic Coil
Diameter:20.2mm,Height:62mm
Large force solenid coil with cable for big size solenoid valve
IP65 solenoid coil with cable for large orifice 2 way solenoid valve
IP65 solenoid coil with cable for large orifice 2 way normal close solenoid valve
Product Details
| Normal Voltage | AC220V AC110V DC24V DC12V | |
| Normal Power | AC | 44VA |
| DC | 33W | |
| Other voltage and power can be customized | ||
| Insulation Class | H | |
| Connection Type | DIN43650A | |
| Diameter | 20.2 mm | |
| Height | 62 mm | |

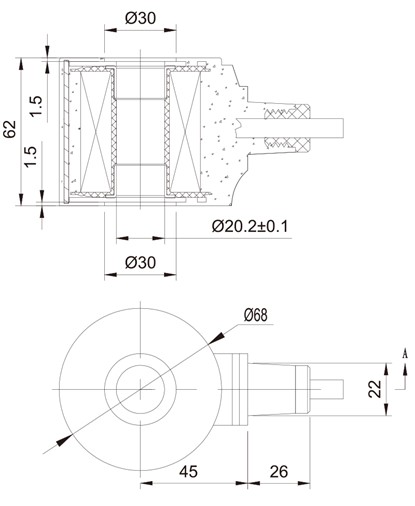

Overall Dimension
