Purpose: Designed to release compressed air bursts to clean filter surfaces, enhancing filtration efficiency.
Variety: Available as diaphragm and solenoid types, each suited for specific systems.
Material: Constructed from durable materials like aluminum and stainless steel, ensuring longevity.
Efficiency: Characterized by rapid open/close actions, minimizing air use while maximizing cleaning.
Size and Configuration: Offered in various sizes to match different airflow needs.
Dust Collect Valve Catalog
Product Details
| Model | RMF-Y-86S |
| Working Pressure | 0.3 ~ 0.8 Mpa |
| Ambient Temperature | -5 ~ 55 ℃ |
| Relative Humidity | <85% |
| Working Medium | Clean Air |
| Voltage | AC110V/AC220V/DC24V |
| Diaphragm Life | Over One Million Cycles |
| Orifice | φ 86 |
| Connection Port | φ 90 |

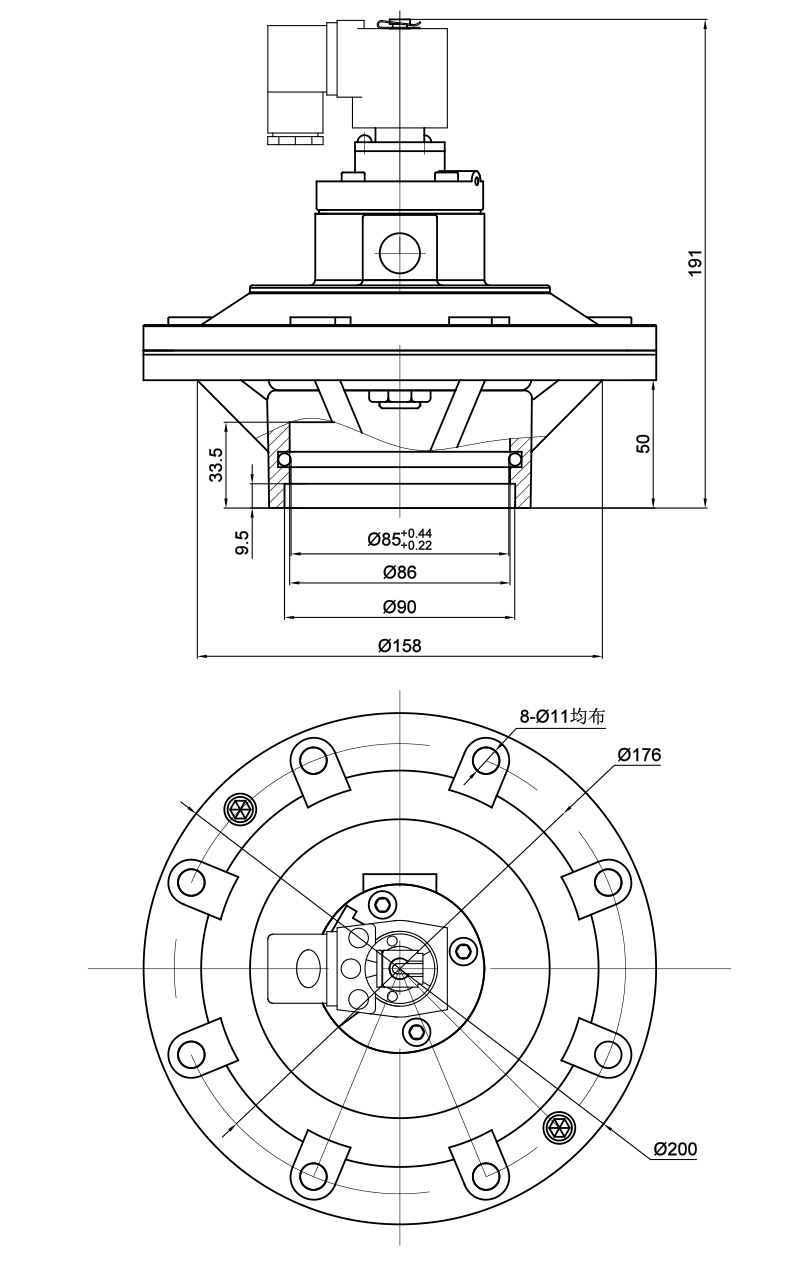

Overall Dimension
