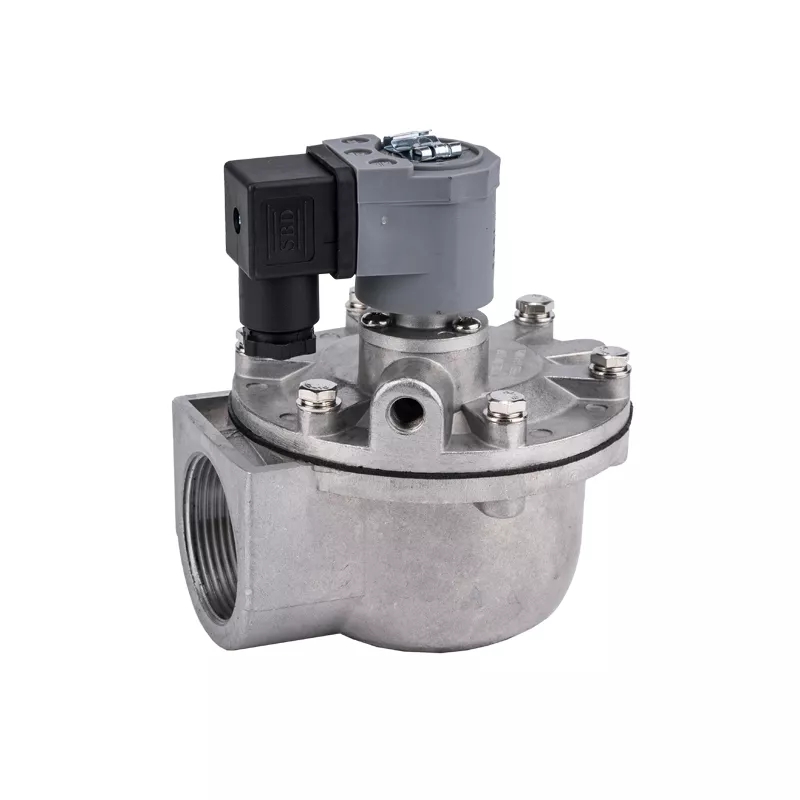

Right Angle Pulse Jet Valve
Right Angle Pulse Jet Valve
Exceptional Durability: Constructed with premium materials, our pulse valve is built to last, ensuring long-term reliability and reducing the need for frequent replacements.
High-Performance Diaphragm: The valve features a specially designed diaphragm that ensures quick and effective opening and closing, providing efficient pulse cleaning.
Energy Efficient Operation: Our pulse valve is engineered to consume less air energy while delivering powerful cleaning pulses, making it a cost-effective solution for your systems.
Wide Range of Applications: Ideal for various dust collector systems, our valve can be used in industries like cement production, pharmaceuticals, woodworking, metalworking, and more.
Easy Installation and Maintenance: The valve's design allows for quick and hassle-free installation, and its minimal maintenance requirements ensure uninterrupted operation.
Dust Collect Valve Catalog
Product Details
| Model | RMF-Z-35P |
| Working Pressure | 0.3 ~ 0.8 Mpa |
| Ambient Temperature | -5 ~ 55 ℃ |
| Relative Humidity | ＜85% |
| Working Medium | Clean Air |
| Voltage | AC110V/AC220V/DC24V |
| Diaphragm Life | Over One Million Cycles |
| Orifice | φ 35 |
| Connection Port | G1-1/2" |
The Right Angle Pulse Jet Valve is an essential component in pulse jet dust collector systems, designed to deliver powerful bursts of compressed air to clean filter bags efficiently. With its right-angle airflow design, the valve allows compressed air to enter the filter system quickly and effectively, ensuring consistent dust removal and maintaining optimal filtration performance. It plays a critical role in maintaining clean air and improving the operational efficiency of industrial dust collection systems.
Robust and Durable Construction
Manufactured using high-strength aluminum alloy or corrosion-resistant materials, the Right Angle Pulse Jet Valve is built to withstand demanding industrial environments. Its durable construction ensures reliable performance even under high pressure and continuous operation. This durability significantly reduces maintenance costs and ensures long-term stability in dust filtration systems.
Advanced Diaphragm Technology
At the heart of the valve is a high-performance diaphragm that enables rapid response and precise control of compressed air pulses. The diaphragm is designed for fast opening, tight sealing, and long service life, allowing the valve to release strong and consistent air pulses. This ensures that accumulated dust is effectively dislodged from filter bags, maintaining the efficiency of the dust collector.
Optimized Airflow Design
The right-angle structure of the valve minimizes airflow resistance and ensures smooth air passage. This design improves the efficiency of the compressed air pulse, enabling more effective cleaning of filter bags while reducing air consumption. As a result, the system operates more efficiently with lower energy costs.
Energy Saving and Cost Efficiency
The Right Angle Pulse Jet Valve is engineered to maximize cleaning efficiency with minimal compressed air usage. By optimizing pulse performance, the valve helps reduce energy consumption and operating costs while maintaining excellent filtration performance. This makes it an ideal solution for large-scale industrial dust collection systems that require reliable and economical operation.
Due to its reliable performance and efficient dust cleaning capability, the Right Angle Pulse Jet Valve is widely used in various industries, including:
Cement and construction material plants
Steel and metal processing factories
Pharmaceutical and chemical industries
Woodworking and furniture manufacturing
Food processing and grain handling facilities
Mining and power generation plants
In these industries, dust control is critical for both environmental protection and equipment longevity, making pulse jet valves an indispensable part of the filtration system.
Easy Installation and Reliable Operation
The valve is designed for simple installation and convenient integration into pulse jet bag filter systems. Its compact structure allows it to fit easily into various dust collector configurations. Once installed, the valve operates reliably with minimal adjustment, ensuring stable pulse cleaning performance.
Low Maintenance Requirements
Thanks to its simple yet robust design, the Right Angle Pulse Jet Valve requires very little maintenance. The diaphragm and internal components are designed for long-term durability, reducing the frequency of replacements and minimizing downtime. This helps factories maintain continuous production and efficient dust control.
Improved Dust Collector Performance
By delivering strong and consistent air pulses, the Right Angle Pulse Jet Valve helps maintain optimal filter bag permeability. This prevents excessive dust buildup, reduces pressure drop within the system, and extends the service life of filter bags. As a result, the overall performance and efficiency of the dust collector are significantly improved.
Reliable Solution for Industrial Dust Control
Whether used in small-scale dust filtration systems or large industrial baghouses, the Right Angle Pulse Jet Valve provides stable, efficient, and reliable performance. Its durable design, efficient airflow control, and low maintenance requirements make it a trusted solution for modern dust collection systems.

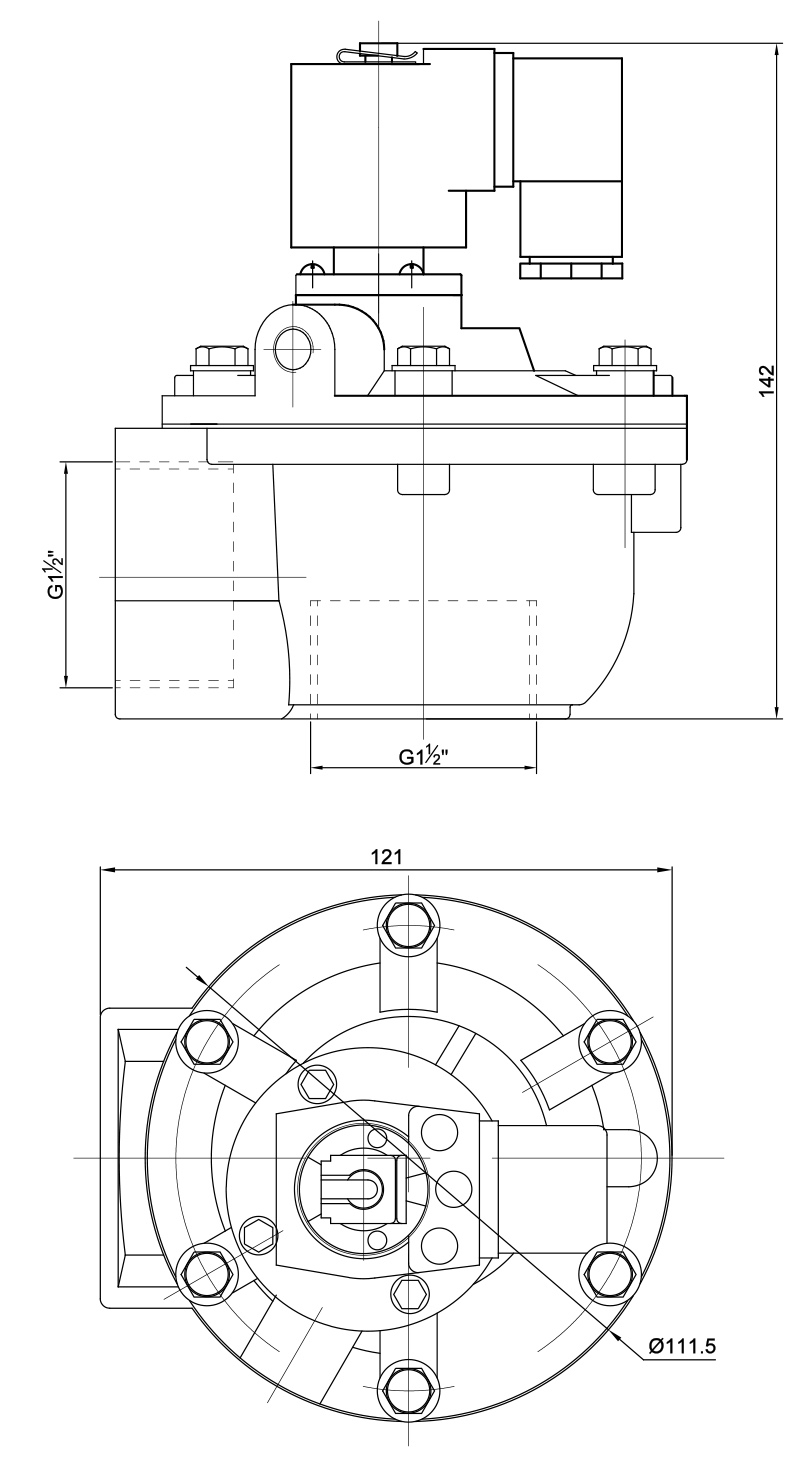

Overall Dimension
