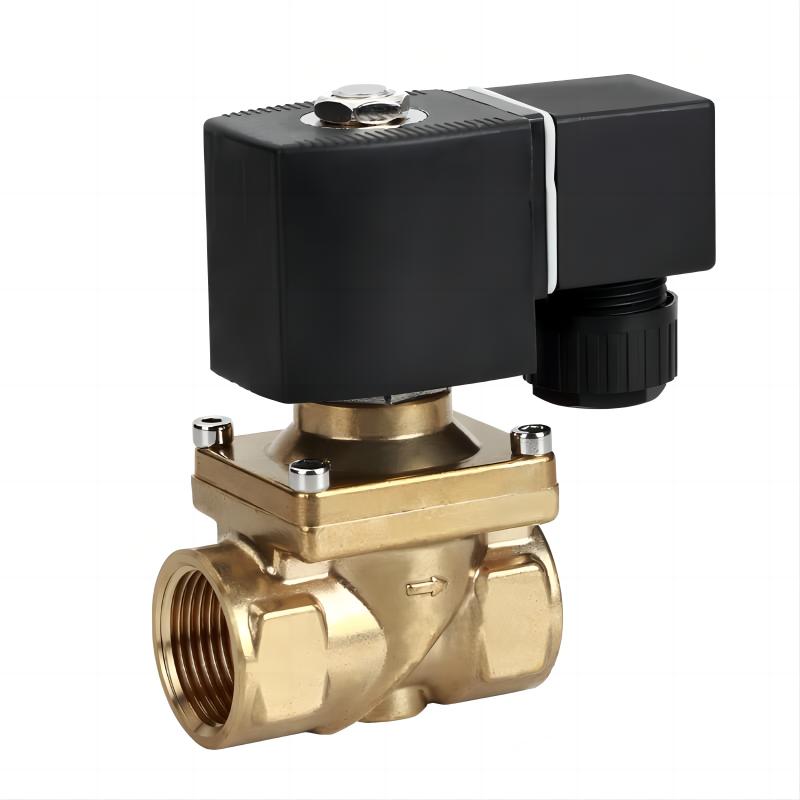

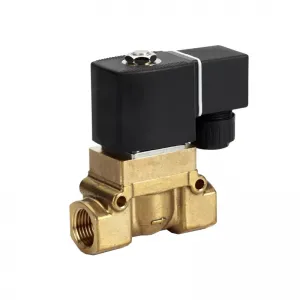

SB116-4 High Temperture Type Solenoid Valve

  • Pressure Handling: Two-way valves are designed to handle specific pressure ranges. It's important to select a valve that can withstand the operating pressure of the system.

  • Flow Control: They are used for on/off control but can also be used for basic throttling of flow. Some two-way valves are designed to control flow rate.

  • Applications: These valves are used in a wide range of applications including HVAC systems, water supply, industrial process control, and irrigation systems.

  • Sealing Mechanisms: The sealing of the valve is crucial for preventing leaks. Common sealing materials include PTFE (Teflon), EPDM, and NBR, chosen based on compatibility with the fluid.

  • Connection Types: Connection types can vary, including threaded, flanged, or compression fittings, depending on the system requirements.

  • Maintenance and Durability: Generally, two-way valves are low-maintenance and have a long service life, but this can vary based on the type of valve and application.

SB116 Solenoid Valve Datesheet

SB116-4 High Temperture Type Solenoid Valve


Working Pressure0.1~1.6MPa
Ambient Temp.-10~+55℃
Medium Temp.-10~+180℃
Power Consumption20AC(VA) / 13DC(W)
Seal MaterialNBR / PTFE
Working MediumAir / Water / Gas
Available AccessoriesTimer / Connector / Ex-proof coil
Working TypePilot Type
PatternNormally Closed / Normally Open
Body MaterialBrass / Stainless steel

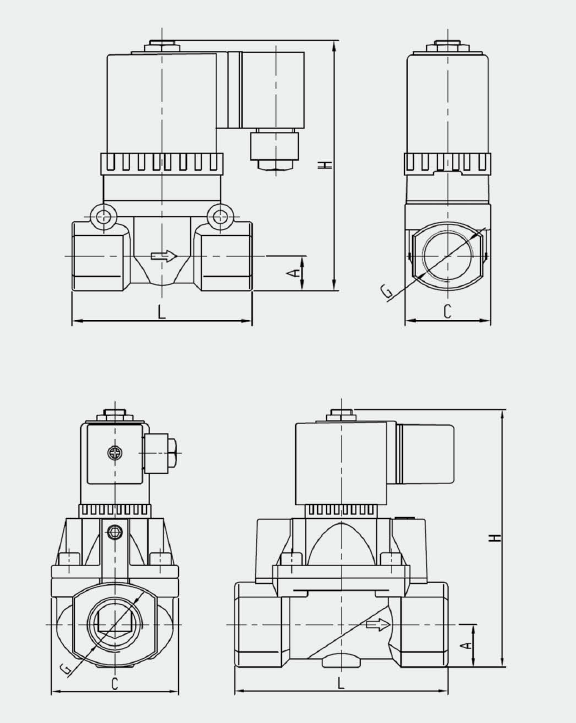

Overall Dimension

SB116-4 High Temperture Type Solenoid Valve

ModelOrifice (mm)Kv Value (m³/h)Connection ports
