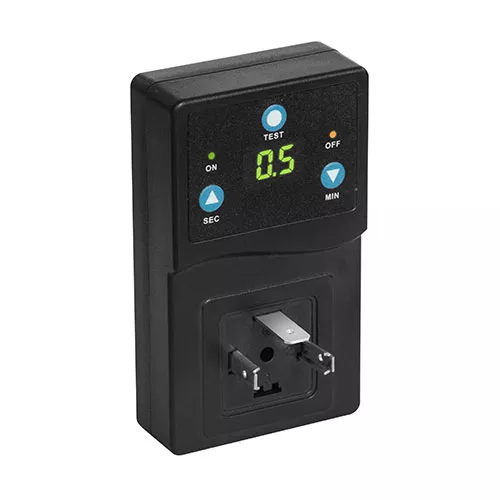

| Item No. | XY-790H | XY-790L |
| Input | Voltage | 110~240V AC/DC | 7~36V AC/DC |
| Power | 10mA Max | 20mA Max |
| Output | Form | MOS output | relay output |
| Model | Close first,then open |
| Current | 1.5A Max |
| Display | Basic display | 2 digitaltube show the time value,2 LED indicator |
| Stauts display | Digtal tube countdown,decirmal point flashes every seconds |
| Adjust mode | The corresponding status indictor flashes when changing data |
| Time setting | ON | 0.1~99sec |
| OFF | 0.5-99min |
| Protection class | IP65 |
| Connection | DIN43650A |
| Insulation voltage | 1000VAC 1min |
| Insulation resistance | 50MΩ(500V DC) |
| Impact resistance | MAX 100m/s2 each 3 axis and 6 direction for 3 times |
| Ambient temperature | Working:-10~70℃,storage:-20~80℃ |
| Ambient humidity | 35~90% RH |
