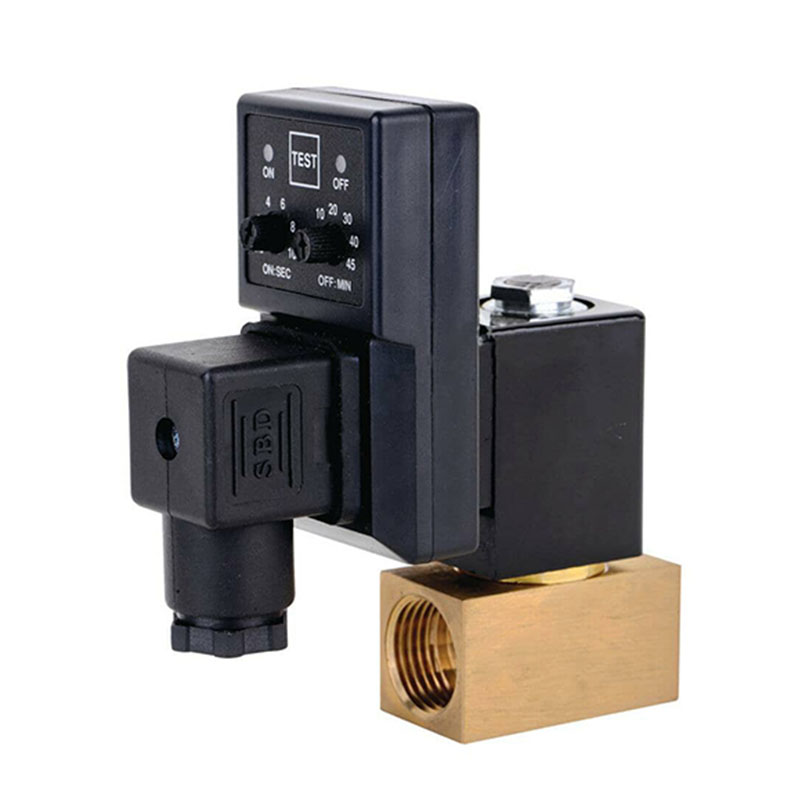

CS Drain Valve
CS Drain Valve
Applications: Suitable for Water, Air, Oil; operates between 0-7bar, maxing at 10bar.
Standard Features: NC mode with a Brass body and NBR seal.
Thread: Uses standard G type.
Body Options: Available in SS304 or SS316 stainless steel.
Customizations: Viton seal for enhanced resistance; NPT threading available.
Product Details
| Model | CS-720 |
| Valve style | 2/2 Direction action |
| Connection Ports | 1/8" 1/4" 3/8" 1/2" Female |
| Pattern | Normally close |
| Working pressure | 16Bar 40Bar 80Bar |
| Timer | XY-720 |
| On/off time | On 0.5~10S, Off 0.5-45min |
| Working Temp. | -20℃~60℃ |
| Highest Media temperature | 160℃ |
| Valve body | Brass/Stainless steel |
| Orifice | 1.9mm 2.5mm 4.5mm |
| Insulation class | F/H Class |
| Protection class | IP65(with plug) |
| Voltage | 24~240V DC/AC 50/60Hz +/-10% |
| Power | AC22VA/DC20W |
| Mounting | Any place |
A China Drain Valve is a vital component in fluid control systems, designed to provide safe, efficient, and reliable discharge of condensate or excess media. Built with precision and durability in mind, our drain valves are suitable for a wide range of industrial applications, ensuring consistent performance under varying operating conditions.
Our China Drain Valve is engineered to handle multiple mediums including water, air, and oil. With an operating pressure range between 0–7 bar and a maximum pressure tolerance of 10 bar, it offers flexible use across diverse industries such as manufacturing, chemical processing, HVAC, and pneumatic systems.
Normally Closed (NC) Design: Ensures safety and prevents unwanted leakage when the valve is not energized.
Brass Body Construction: Provides strength, durability, and resistance to corrosion in standard applications.
NBR Seal: Guarantees excellent sealing performance for air, water, and oil, minimizing the risk of leaks.
G-Type Threading: Allows easy installation and compatibility with widely used industrial piping systems.
Premium Body Options
For industries requiring higher resistance to corrosion and harsh environments, our China Drain Valve is available in SS304 and SS316 stainless steel options. These stainless steel versions are ideal for applications in food processing, marine environments, and chemical industries where material reliability is critical.
We understand that different applications require tailored solutions. That’s why our China Drain Valve can be customized with:
Viton Seal: Enhances resistance to aggressive chemicals and high-temperature environments.
NPT Threading: Provides compatibility with U.S. and other international piping standards.
Reliable performance across water, air, and oil systems
Wide pressure range for versatile applications
Durable brass or stainless steel body options
Excellent sealing with NBR or Viton seals
Flexible threading options (G type or NPT) for global use
Low maintenance and long service life
Compressed Air Systems: Efficient condensate removal ensures dry, clean air supply.
Oil and Gas: Reliable discharge for lubrication and hydraulic systems.
HVAC Systems: Maintains efficiency by draining condensate in heating and cooling units.
Food & Beverage Processing: Stainless steel options provide hygienic and corrosion-resistant solutions.
General Manufacturing: Versatile performance for fluid control across multiple processes.

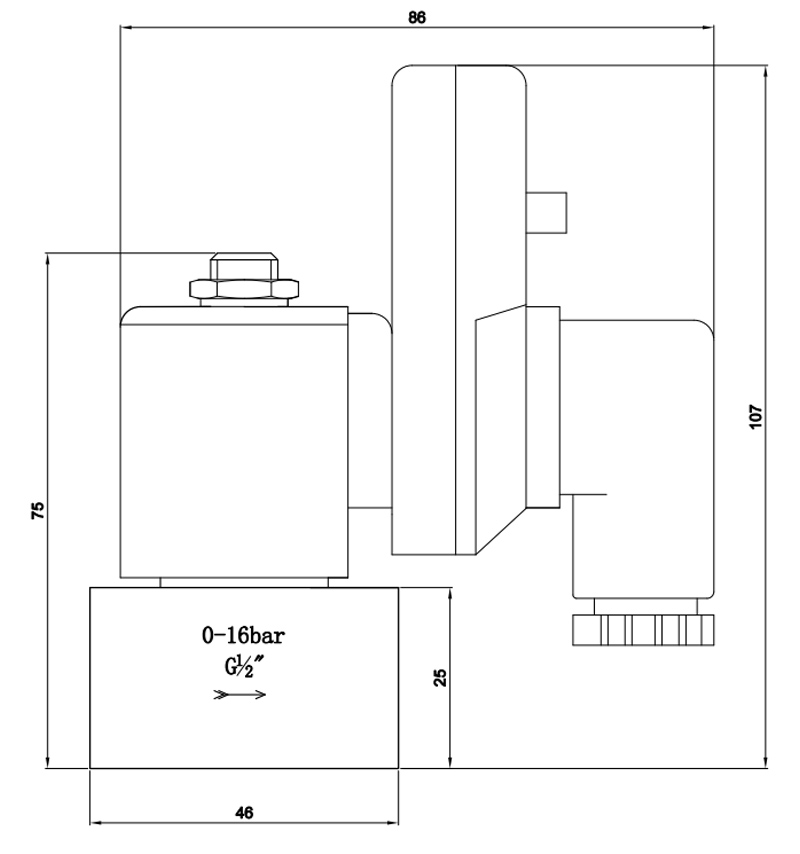

Overall Dimension
