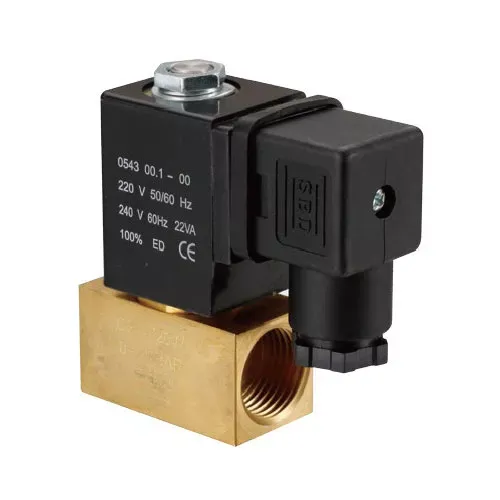

CS-720W Drain Valve

Applications: Suitable for Water, Air, Oil; operates between 0-7bar, maxing at 10bar.

Standard Features: NC mode with a Brass body and NBR seal.

Thread: Uses standard G type.

Body Options: Available in SS304 or SS316 stainless steel.

Customizations: Viton seal for enhanced resistance; NPT threading available.

Product Details

ModelCS-720W
Valve style2/2 Direction action
Connection Ports1/8" 1/4" 3/8" 1/2" Female
PatternNormally close
Working pressure16Bar 40Bar 80Bar
Working Temp.-20℃~60℃
Highest Media temperature160℃
Valve bodyBrass/Stainless steel
Orifice1.9mm 2.5mm 4.5mm
Insulation classF/H Class
Protection classIP65(with plug)
Voltage24~240V DC/AC 50/60Hz +/-10%
PowerAC22VA/DC20W
MountingAny place

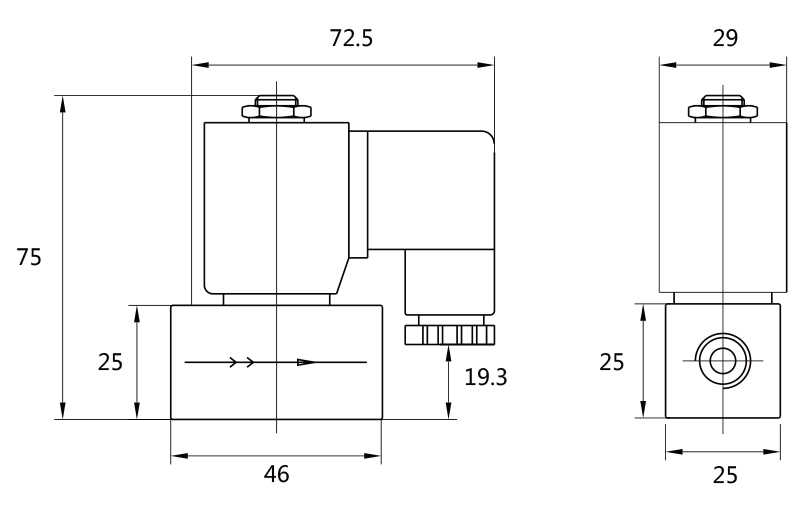

Overall Dimension

CS-720W Drain Valve
