In industrial compressed air and fluid systems, water accumulation is one of the most common and costly issues. Excessive condensate leads to corrosion, reduced system efficiency, safety risks, and shortened equipment lifespan. A reliable drain valve is essential for maintaining stable operations, and among the many options available, the Float Type Drain Valve stands out for its simplicity, stability, and long-term performance.
This article provides a comprehensive explanation of how float-type drain valves work, their core advantages, typical applications, installation tips, maintenance expectations, and key selection criteria for procurement teams.

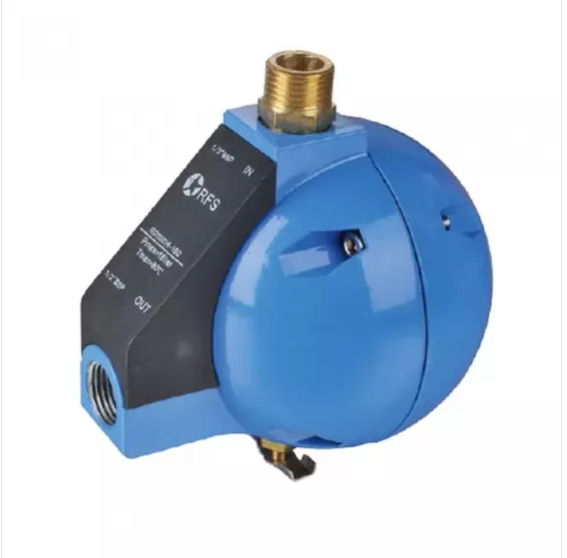

A float-type drain valve is an automatic condensate discharge device used in compressed air systems, steam systems, refrigeration dryers, filters, air receivers, and other industrial pipelines. Its design is based on a mechanical float mechanism that automatically opens and closes depending on the condensate level inside the valve body.
Unlike electrically-driven or timer-controlled drain valves, float-type valves operate purely mechanically. This makes them highly reliable in environments with high humidity, unstable power supply, or heavy contamination.
The operation principle is simple but highly effective.
Inside the valve is a sealed chamber where condensate accumulates. As the water level rises, the internal float moves upward. When the float reaches a certain height, it mechanically triggers the valve seat to open, allowing water to be discharged. Once the condensate level drops, the float moves down and the valve closes tightly.
This cycle repeats automatically without requiring electricity, programming, or compressed-air consumption.
The core characteristics of its working mechanism include:
Fully mechanical design with minimal failure points.
Automatic response to real-time condensate levels.
Zero loss of compressed air during discharge when designed properly.
Long lifecycle even under demanding industrial conditions.
Float drain valves are considered one of the most dependable solutions for condensate removal. Their advantages include:
1. Fully Automatic Operation
No power source, solenoid, timer, or manual intervention is required. The valve reacts only when condensate is present, ensuring consistent performance.
2. Energy Saving with Zero Air Loss
High-quality float drain valves discharge water only, not compressed air. This saves energy and avoids system pressure fluctuations.
3. Extremely Reliable in Harsh Environments
They are ideal for areas with dust, oil, water, or corrosive particles because there are no electrical components to fail.
4. Low Maintenance Requirements
Their simple mechanical structure reduces the need for frequent servicing. Many operate trouble-free for years with minimal cleaning.
5. Long Service Life
Made from stainless steel or corrosion-resistant alloy, a float drain valve can withstand continuous contact with dirty condensate.
6. Safe and Stable Operation
No risk of electric faults, short circuits, or timer misconfigurations. Consistent discharge protects equipment from moisture damage.
These valves are found across nearly all industries that depend on compressed air or steam. Typical applications include:
Air compressors
Refrigerated air dryers
Desiccant dryers
Compressed air filters
Air receiver tanks
Heat exchangers
Steam systems
Pneumatic conveying systems
Industrial production lines in manufacturing, automotive, food processing, electronics, chemical processing, and energy
Wherever condensate forms, a float drain valve provides stable automatic drainage.
Procurement professionals value solutions that reduce operational costs, avoid downtime, and deliver long-term performance. Float drain valves meet these expectations due to:
Mechanical reliability that reduces repair budgets
Energy-saving performance with zero compressed-air waste
Long lifespan that lowers replacement frequency
Compatible installation across a wide range of equipment
Ease of maintenance without specialized technicians
Strong tolerance of dirty condensate, rust, and oil residue
For facilities that want predictable functionality without investing in electrical infrastructure, float-type valves are a go-to option.
To maximize efficiency and lifespan, proper installation is essential. The following guidelines help avoid common issues:
Install the valve at the lowest point of the system for maximum condensate collection.
Ensure the inlet piping is clear and properly sized to prevent clogging.
Avoid installing upstream or downstream restrictions that may interfere with drainage.
Maintain a slight slope in the pipeline to direct condensate into the chamber.
Periodically remove debris from the valve seat or strainer.
Allow sufficient clearance around the valve for service and maintenance.
Correct installation significantly improves drainage efficiency and reduces the probability of clogging.
Even though float drain valves are low maintenance, some routine checks ensure longevity:
Clean sediment and sludge from the valve body periodically
Inspect the float for wear or contamination
Check the valve seat for tight sealing
Replace internal seals as part of scheduled maintenance
Test the discharge cycle during major system inspections
Simple maintenance allows the valve to operate reliably for many years.
Float-type drain valves rarely fail, but issues can arise when the system environment is highly contaminated or improperly maintained.
Blocked inlet
Cause: sludge, rust, oil residue
Solution: add a prefilter or clean the inlet regularly
Continuous leakage
Cause: worn valve seat
Solution: replace the sealing components
Valve not opening
Cause: stuck float
Solution: remove and clean internal parts, check for debris buildup
Most issues are preventable through regular cleaning and inspection.
When selecting a float drain valve, consider factors that influence long-term performance:
Drainage capacity – The valve must handle peak condensate volume.
Operating pressure range – Ensure compatibility with compressor or steam system pressure.
Material quality – Stainless steel is ideal for corrosive or oil-rich environments.
Connection size and type – Match the inlet and outlet connections.
Contaminant level tolerance – Some models include larger chambers or debris-resistant designs.
Maintenance accessibility – Prefer valves that allow easy cleaning without dismantling the entire system.
Brand reliability and service support – Proven manufacturers offer longer warranties and consistent quality control.
Choosing the right model not only enhances performance but also prevents costly downtime.
In an era of increasing automation and smart manufacturing, mechanical float-type drain valves remain widely used because they provide simple, dependable functionality that meets industrial expectations. Their ability to operate without electricity, their resilience in dirty environments, and their long-term durability keep them relevant across all sectors.
For companies aiming to reduce costs, avoid unnecessary energy loss, and ensure stable system performance, a float-type drain valve is an essential component.
