When operating a rotary screw or reciprocating air compressor, water vapor is naturally released during the compression process. This vapor condenses into liquid and collects at the bottom of the air tank. A drain valve is essential for removing this accumulated water before it causes serious damage to the compressor, potentially leading to costly repairs or the need for replacement.
This article explains why draining water from compressed air tanks is crucial, how drain valves function, and how to replace an air compressor drain valve when necessary.
A condensate drain valve is a small, yet important, component typically installed at the lowest point of a compressor’s air receiver. It opens and closes depending on whether water needs to be released from the tank.
The drain valve facilitates the removal of water from the reservoir tank and other compressor parts. Extensions or specialized valves can also manage moisture in other components such as:
Compressor filters
Air dryers
Drip legs
Air or water separators
Any other locations where condensation accumulates
What Is the Purpose of an Air Compressor Water Drain Valve?
Compressed air naturally contains water vapor. During compression, the air’s capacity to hold moisture decreases significantly. This causes water molecules to coalesce and form condensation, similar to rainfall in the atmosphere.
Drain valves allow the excess water to exit the tank and be safely released into the atmosphere. If condensation accumulates unchecked, it can cause corrosion, damaging the compressor and reducing its service life. Removing this moisture helps protect not only the compressor but also other equipment powered by the compressed air system.
Drain valves come in various designs to suit different system requirements:
Float-operated valves: These valves direct water into a chamber where a float detects the liquid level. Once the water reaches a preset height, the float triggers the valve to open, draining the excess water.

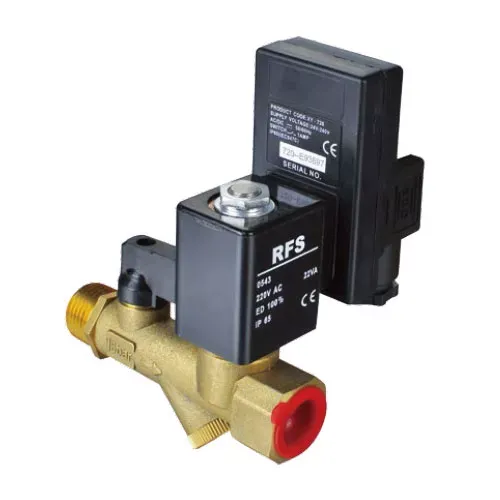

Timer-controlled valves: These open and close automatically at scheduled intervals, ideal for systems requiring regulated operation.
Zero-loss valves: Equipped with a sensor probe, this valve monitors water accumulation. When the liquid reaches a specific level, the probe sends an electrical signal to a solenoid, opening the valve to drain water while minimizing the loss of compressed air.
All the above valve types are generally automatic, requiring minimal manual intervention. The key consideration is choosing a valve compatible with your compressor and operating conditions.
For example, a float-operated valve works well for compressors located far from power sources. Timer-controlled valves are suitable for systems that run on regular schedules. Zero-loss valves are best if reducing compressed air wastage is a priority during the draining process.
Drain valves are vital for the proper functioning of air compressors. When they show wear, replacement should be done promptly. A leaking valve, for instance, can severely impact compressor performance.
Condensation, rust, or corrosion can prevent a valve from sealing properly and maintaining the correct pressure. If a valve fails to open, moisture and corrosion may build up inside the tank. Replacing worn valves ensures the system remains in good condition and prolongs its operational life.
Tools Needed for a Drain Valve Replacement
Replacing a drain valve does not require specialized tools. Commonly needed items include:
A new drain valve
Hand wrench or socket
Brush or cloth for cleaning rust and debris from threads
Safety glasses
New valves typically come with sealant pre-applied, eliminating the need for additional materials.
Before starting, depressurize the tank by opening the drain valve and allowing all air to escape. Once the tank is depressurized, follow these steps:
Disconnect the compressor from the power supply.
Position the compressor on its side to access the drain valve.
Use a wrench to turn the old valve counterclockwise and remove it.
Clean the threads of any rust or debris.
To install the new valve:
Remove the new valve from its packaging.
Insert the valve into the tank and turn counterclockwise.
Use a wrench to securely tighten the valve, ensuring it is properly seated.
